PVC coated welded 358 anti-climb industrial security mesh fence for playground
Description:
Securifor 358 is the ultimate welded mesh system offering one of the most effective means of providing a high degree of physical perimeter protection where a discreet visual impact on the immediate environment is essential.
he panels are manufactured to form a mesh pattern of 76.2mm x 12.7mm using 4mm diameter vertical and horizontal wires which are resistance welded at each intersection. This method of construction produces a panel that is both formidable in strength and appearance.
A range of square hollow section posts are available to suit the specified fencing which is offered in the heights from 1.20m to 5.20m. The panels are attached to the post by means of a 75mm panel overlap and clamp bar arrangement which is securely fixed to the post by M8 bolts and Permacone nuts. Factory fitted inserts together with stainless steel Permabolts are available.
Productive process
Material: Manufactured from hard drawn wire and electro-resistance welded at every intersection Heavy Low Carbon Wire, Heavy Mild Steel Wire, Stainless Steel Wire
Specification:
| mesh panel height | 0.95m -5.2m |
| mesh panel width | 2m,2.2m,2.5m,3m |
| hole opening | 12.7mmx76.2mm(1/2''x3'') |
| wire thickness | 3mm,4mm,5mm |
| material | low carbon steel wire,galvanized wire |
| finished | electric galvanized,hot dipped galvanized,polyester painting |
| polyester painting color | any RAL series color(normal RAL 6005-dark green,RAL9005-black) |
| curves | on request |
| C post | 62mmx83mmx3mm |
| round post | outside diameter:80mmx3mm |
| rectangular post | 60mmx80mmx3mm,60mmx120mmx3mm |
| post length | on request(normal 2.3mm-4m) |
| material | square steel pipe,round steel pipe,C type steel |
| finishied | electric galvanized,hot dipped galvanized,pvc coated |
| polyester painting color | any RAL series color(normal RAL 6005-dark green,RAL9005-black) |
Surface treatment:
1. Fence panel manufactured from electro galvanized hard drawn wire,then with powder coating;
2. Fence panel manufactured from low carbon steel wire,then electro galvanized with powder coating;
3. Fence panel manufactured from low carbon steel wire,then with heavy hot dipped galvanized coating.
4. Fence panel manufactured from Galfan wire,then with powder coating.Technical description of 358 fence post profile:
1. Post section:80x60mm,80x80mm or 120x60mm;
2. Plate of post thickness:2.5mm or 3.0mm;
Coating:
Internally and externally galvanized (minimum 250g/m2 both sides combined).Powder coating(minimum60um).
Colors:RAL6005,RAL9005.Other colors also are available.
Feature:
1. simple in structure,artistic and practical.
2. easy to transport,It won”t be restricted by terrain.
3. have a good adaptbility to mountain land,sloping fields and rugged fields.
4. the price is lower,so it is suitable for large area of use.
Application:
High security 358 fence is world renouned for its performance as an anti-climb & anti-cut through barrier, whilst providing the lowest level of visual impact to the surroundings. Designed to give attractive, long lasting and secure perimeter protection for retail,industrial and commercial properties, schools, public utilities and is ideally suited for electronic alarm and detection systems - no blind spots for CCTV. Military, airports, secure units and prisons.
Product Tags:
|
|

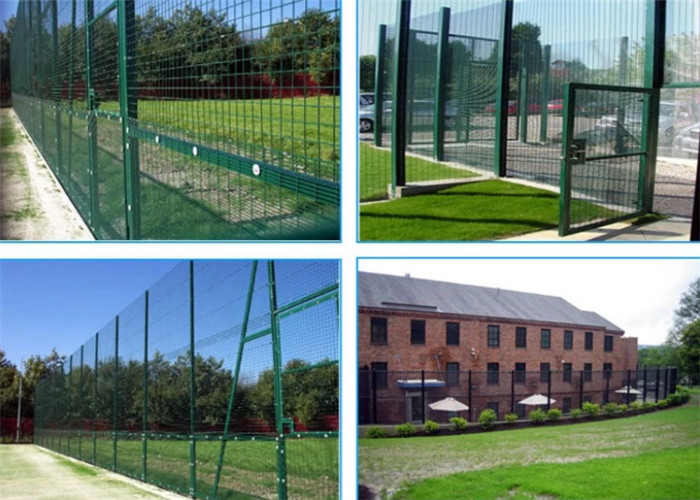

Welded industrial 358 security mesh panels for playground 0.9m-5.2m height Images
|
